VLF high voltage tester 90KV

VLF high voltage tester 90KV VLF high voltage tester 90KV VLF high voltage tester 90KV VLF high voltage tester 90KV
Product name:VLF high voltage tester 90KV
Item:VLF-90 (90KV peak)
Price:VLF high voltage tester
Details:
Micro-controller, Touch Colour LCD
Advanced digital frequency technology
Built-in printer
Discharge free
Portable
60mins Continous working
CE mark
Patent
5th generation

The VLF testers (Generator) are easily
to test cables, transformers, switchgear,
rotating machinery and other
electrical apparatus.


VLF Advantage

1. Safe Optical isolation technology,
2. Easiest to use Fully automatic microcontroller
3. H/L voltage closed loop negative feedback control
4Built-in printer
5. Built-in protective resistors
6True sine wave output

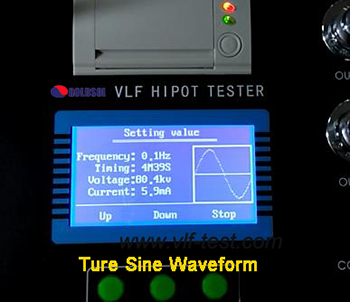

7Real-time display of actual output waveform
8Ergonomic, menu guided, large Touch Colour LCD
9Storage of test results for later retrieval and print.
10Over voltage and current protected
11Variable frequency 0.1Hz, 0.05Hz, 0.02 Hz, 0.01Hz
12Data of current, voltage and waveform directly sampled at HV side.
13AC testing does not degrade good cable insulation
14Harmful space charges are not injected into the cable insulation
15No traveling waves are generated during testing
16Rugged and reliable design less prone to failure from transients
17. Invatation Patent
18. CE mark

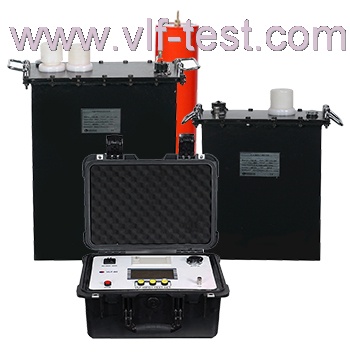

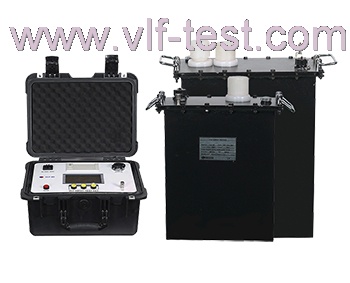

19. Portable, 1 Controller + 2 boosters
Each booster can be used separately, there are 1*40KV + 1*50KV booster
  Booster for 80KV set, using the 40KV booster to test ≤40KV output, using the 50KV booster to test 50KV output,
  Using 2 boosters in series connection to test
≤90KV output.







Safety features

1. Short circuit protected.
2. Status display of all important safety functions and messages.
3. Safe, easy to use operation with emergency off and key switch lock-out.
4. Fully integrated discharge circuit to safely ground the DUT after testing.
5. Zero start interlock.
6. Zero voltage switching.


Specification


1.Power: 220V ± 10% AC, 50/60 Hz, single phase (110KV source can be customized);

2. AC Output-Voltage :90KV peak (DC output for optional);

3.Output frequency: 0.1Hz, 0.05Hz, 0.02 Hz, 0.01Hz (0.01Hz for optioanl);

4. Stability of frequency: Fluctuation < 0.5%

5. Measurement accuracy: ±3%.

6. Positive and negative voltage peak error: ≤3%.

7. Voltage waveform distortion: ≤5%

8. Construction:Control unit and Booster (there are 2 boosters for 60KV set)

9. Ambient conditions of use: temperature Indoor and outdoor : -10ºC  + 50ºC.

10. Humidity:≤85%

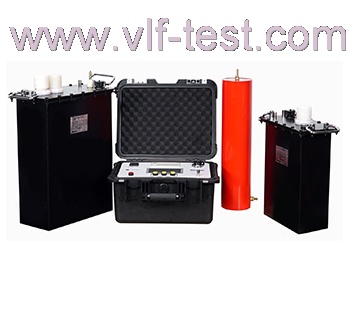

12.Test set includes:  1 controller + 2 boosters + 1 capacitor.
      (Capacitor can be used as device under testing for check/demo, or used as capacitive compensation when test objects capacity is too low).

13.Main technical datas for VLF series:


Model no
Output
Voltage/
Current
(Peak)
Load Capacity
Control Unit
Booster
Power
Capacitance/
Freuency
Net Dim.
(cm)
Net Wt
 (kg)
Net Dim.
(cm)
Net Wt
(kg)
VLF-30
 30KV/20mA

0.1 Hz, ≤1.1µF
0.05Hz, ≤2.2µF
0.02Hz, ≤5.5µF
0.01Hz, ≤11.0µF

40×24×31
  6
34×16×30
25
1000W
VLF-40
 40KV/20mA

0.1 Hz, ≤1.1µF
0.05Hz, ≤2.2µF
0.02Hz, ≤5.5µF
0.01Hz,≤11.0µF

40×24×31
  6
44×18×37
40
1200W
VLF-50
 50KV/30mA

0.1 Hz, ≤1.1µF
0.05Hz, ≤2.2µF
0.02Hz, ≤5.5µF
0.01Hz, ≤11.0µF

40×24×31
  6

44×19×37

45
1500W
VLF-60
 60KV/59mA
0.1Hz ≤ 0.5µF
0.05Hz ≤ 1.0µF
0.02Hz ≤ 2.5µF
0.01Hz, ≤5.0µF
40×24×31
  6
45×20×38
34×16×30
45+25
2000W
VLF-70
 70KV/59mA
0.1Hz ≤ 0.5µF
0.05Hz ≤ 1.0µF
0.02Hz ≤ 2.5µF
0.01Hz, ≤5.0µF
 40×24×31
  6
45×20×38
34×16×30
45+25
2500W
VLF-80
 80KV/59mA
0.1Hz ≤ 0.5µF
0.05Hz ≤ 1.0µF
0.02Hz ≤ 2.5µF
0.01Hz, ≤5.0µF
40×24×31
  6
45×20×38
34×16×30
45+25
3000W
VLF-90
 90KV/59mA
0.1Hz ≤ 0.5µF
0.05Hz ≤ 1.0µF
0.02Hz ≤ 2.5µF
0.01Hz, ≤5.0µF
40×24×31
  6
46×22×38
45×20×38
45+45
3500W
VLF-100
100KV/59mA
0.1Hz ≤ 0.5µF
0.05Hz ≤ 1.0µF
0.02Hz ≤ 2.5µF
0.01Hz, ≤5.0µF
40×24×31
  6
50×25×40
50×25×40
48+48
4000W


Accessaires

Sr no.
     Description
Quantity
  1
Control unit
1
unit
  2
Booster
2
unit
  3
Capacitor (0.04µF)
1
unit
  4
Discharge rod
1
unit
  5
HV Test/Connection cables
1
set
  6
Earth cable
1
unit
  7
Power supply cable
1
unit
  8
Fuse
2
units
  9
Printer paper
1
unit
 10
Operating manual
1
unit
 11
Factorys Calibration report
1
unit
